1952 K-model shifter rubber

The small stuff adds up. Almost 10 bucks for this little part. pdf version
When I bought that aftermarket chrome shift lever I bought this shifter rubbed pedal from the same vendor. The 1952 K-model parts book provides yet another mystery about the shift lever and pedal.

First off it shows that the rubber is held on with a nut, it does not screw directly into the lever. OK, so far, but then it gives a part number 34600-47A for the complete lever.

The lever alone is a 34606-52 and the rubber is a 34609-52. It beats me how you can make a -47 part number out of two -52 parts.		 1952_K-model_shifter_rubber_stud

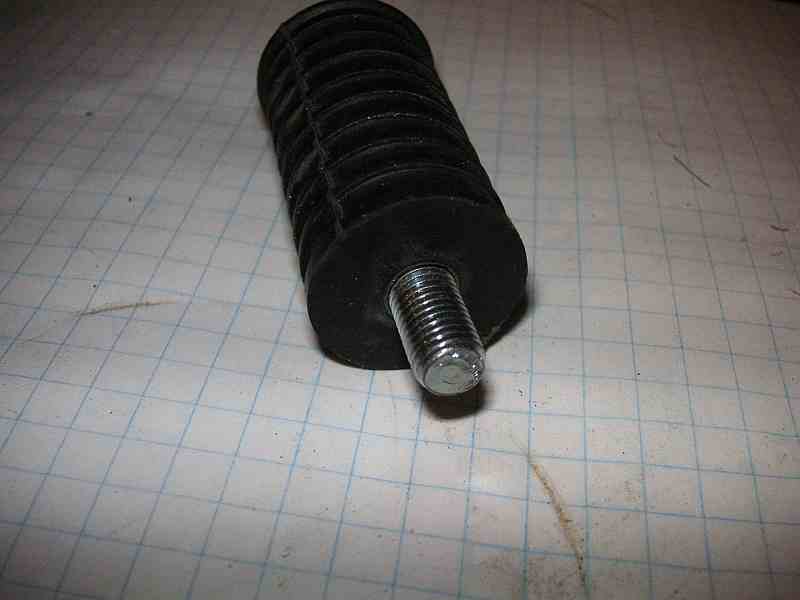

Here is the stud, the factory manual shows that the threads don't go all the way to the rubber. This one threads into the threaded parts of the lever. The factory lever has the non-threaded hole and you use a nut on the stud.

I guess the narrative is that they made the -47A number in 1952, and what they are trying to tell is is that the assembly made from two -52 parts will retrofit on any bike that used the -47 part.
Bottom of first column move down to the left
1952_K-model_shifter_rubber

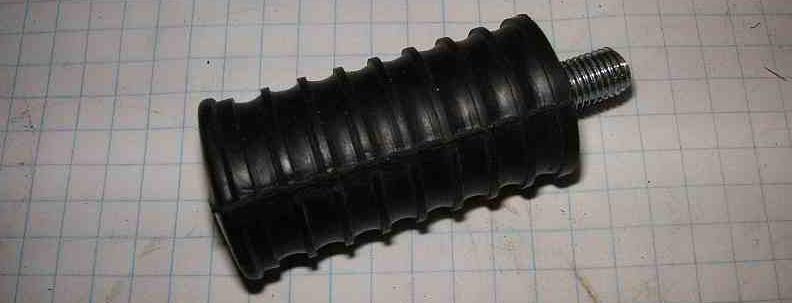

Here is the repop shifter rubber. Flash from the molds, crappy soft rubber, and no "Harley-Davidson" molded into the rubber.
Here is the table as I buy parts for this project.
Date Descript Cost Shipping Total
Thursday, March 15, 2012 Sprocket cover $189.49 $11.35 $200.84
Wed, March 21, 2012 Engine, uncrating $2,500.00 $464.56 $2,964.56
Friday, March 23, 2012 Rolling chassis, uncrating $3,500.00 $669.00 $4,169.00
Sunday, March 25, 2012 Parts manual $30.00 $0.00 $30.00
Sunday, March 25, 2012 Gas tank $500.00 $25.00 $525.00
Tuesday, March 27, 2012 Top motor mount $56.00 $12.00 $68.00
Thursday, March 29, 2012 Shock covers, top $102.50 $6.50 $109.00
Sunday, April 01, 2012 Battery carrier $39.99 $5.30 $45.29
Wed, April 04, 2012 Air filter backing plate $77.55 $15.00 $92.55
Saturday, April 07, 2012 Gas tank #2 $168.50 $28.00 $196.50
Saturday, April 07, 2012 Shift lever $22.38 $0.00 $22.38
Sunday, April 08, 2012 Rider's handbook $85.50 $0.00 $85.50
Tuesday, April 10, 2012 Battery carrier #2 $24.99 $6.95 $31.94
Tuesday, April 10, 2012 Front fender $204.38 $50.00 $254.38
Tuesday, April 10, 2012 Shifter rubber $8.95 $0.00 $8.95
$7,510.23 $1,293.66 $8,803.89
