Shifter support lifter dowel

Two long thin dowels stake the steel lifter parts to the side of the shifter support.

These long dowels stake down the steel lifer arms to t
he side of the support holder.

Sportster_Trap-doorsThe Iron Sportster trap door assembly holds the mainshaft, countershaft, and shifter mechanism.

The Iron Sportster shifter comes as the 34009-52 assembly.
Bottom of first column move down to the left

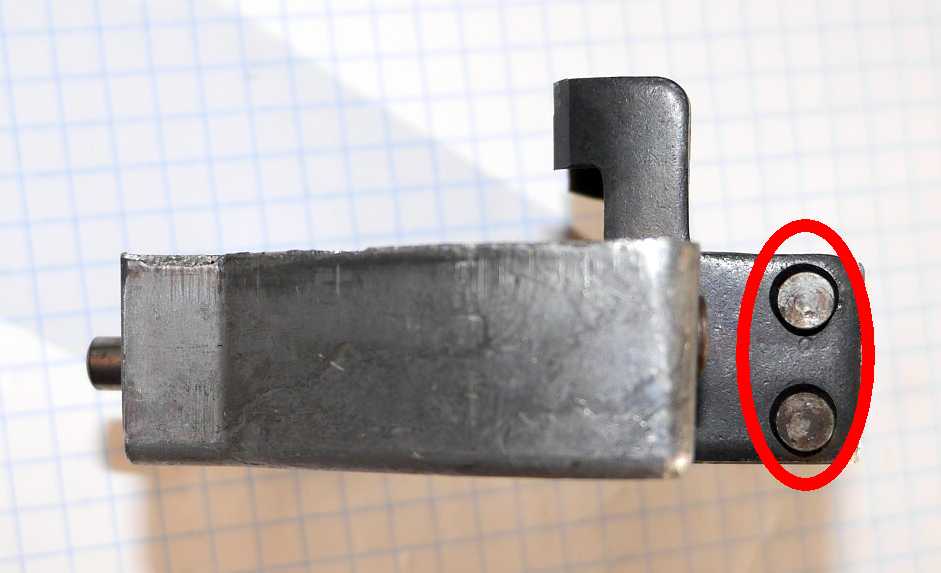

Here is an on-end view of the shifter lifter dowels as installed on the shifter support. The steel parts are called lifters since they lift off the shifter pawls so you can ratchet the carrier both ways.
move up a little to the right This is the end.
