Shifter carrier spring

Springs extend the plungers or pivots the hooks on the later design.
34482-52(2)
1952-1971

37222-52
1972-1984

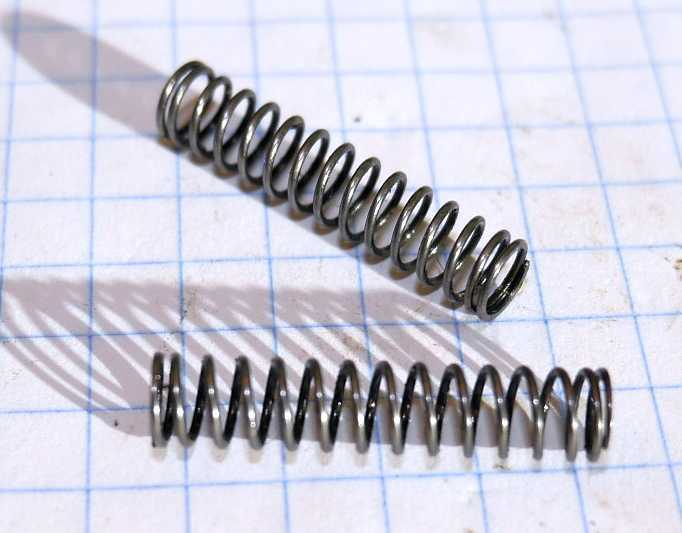

Two springs extend the plungers in the earlier carrier design. A single contraction spring pivots the hooks on the 1972 and later design.


 Sportster_Trap-doorsThe Iron Sportster trap door assembly holds the mainshaft, countershaft, and shifter mechanism.
../Sportster_34009-52_Shifter-assembly.JPG
The Iron Sportster shifter comes as the 34009-52 assembly.
Bottom of first column move down to the left

34482-52(2)

1952-1971

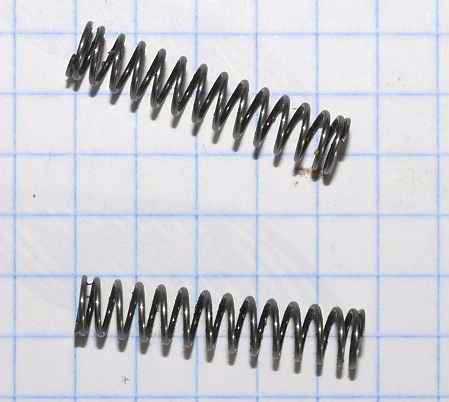

The early style carrier used plungers to ratchet the shifter plate.

37222-52

1972-1984

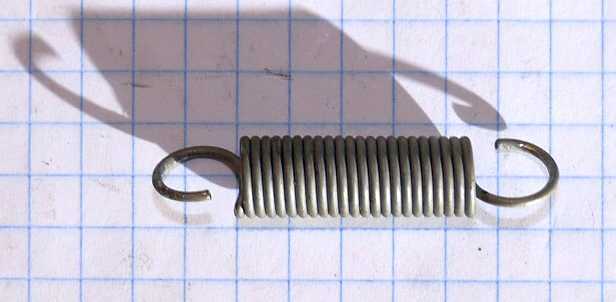

The spring for the later design carrier.
