Mainshaft retainer ring

This ring retains third gear so it can spin on the mainshaft.
This ring retains the 3rd gear on the mainshaft.

The final design for this part came in 1956 and it has lasted all through 1984 and probably beyond.

Do not confust this with the snap ring that retains the washer and roller bearings for the mainshaft output bearing.


The Iron Sportster mainshaft is a triumph of engineering. The general design has sustained from 1952 to 1984. There were teething problems in the early K-model, but they were all cured by 1957 with the introduction of the Sportster.

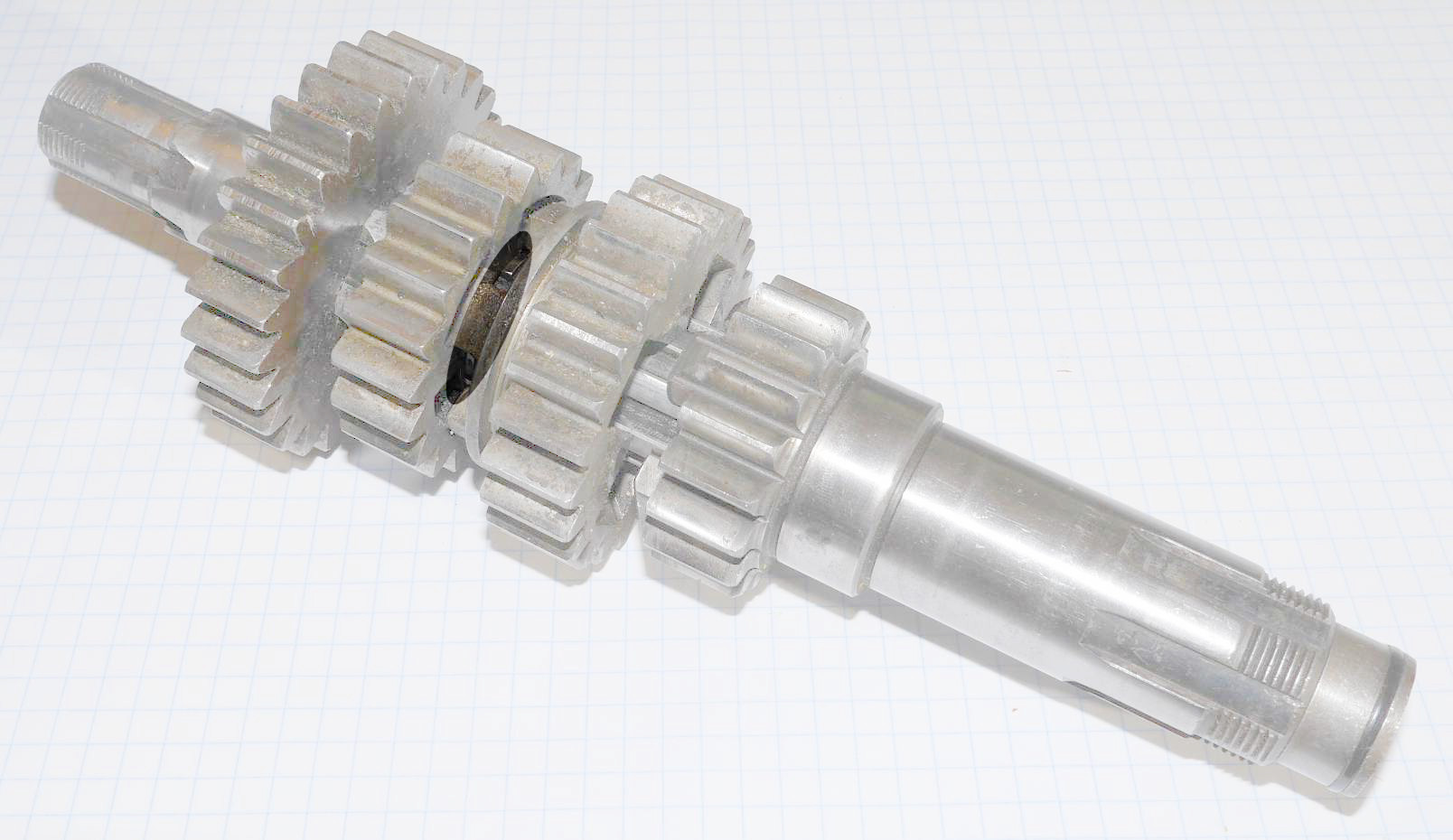

The mainshaft retainer ring is in the darker oval.
Bottom of first column move down to the left


1952 to 1955 K-models.


1956 to 1984 K-models and Sportsters.

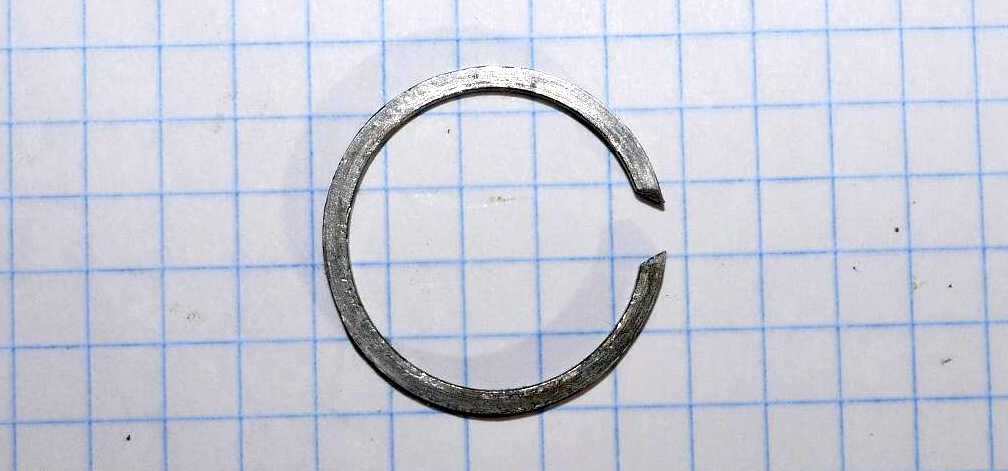

Sportster 35337-56 Mainshaft retainer ring

You should replace this every time you remove it from the mainshaft.
move up a little to the right This is the end.
