Shifter cam washer

This bolt holds the shifter assembly to the trap door assembly.
34060-52
1952-1976

35336-74
1977-1984

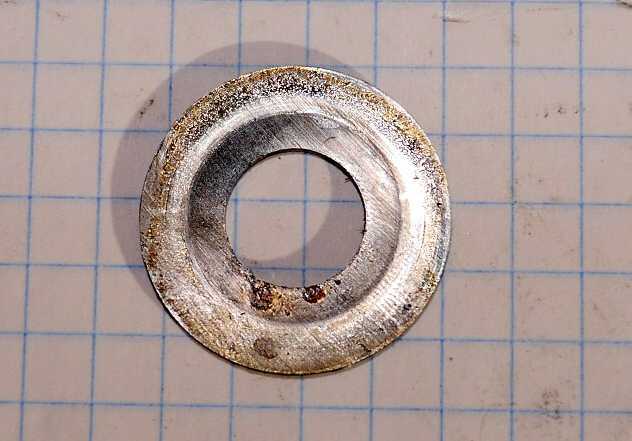

This washer provides thrust support to the shifter plate that rotates to change gears.
 Sportster_Trap-doorsThe Iron Sportster trap door assembly holds the mainshaft, countershaft, and shifter mechanism.
../Sportster_34009-52_Shifter-assembly.JPG
The Iron Sportster shifter comes as the 34009-52 assembly.
Bottom of first column move down to the left

34060-52

1952-1956


35336-74

1977-1984

This washer mounts in a recess in the holder so that the shifter shaft can clear it, as it comes out on the left starting in 1977.
