Mainshaft washer 3rd gear

This washer retains third gear so it can spin on the mainshaft.
This washer retains the 3rd gear on the mainshaft. It is very similar to a washer on the countershaft, but it is a different diameter and will not interchange.

The final design for this part came in 1956 and it has lasted all through 1984 and probably beyond.


The Iron Sportster mainshaft is a triumph of engineering. The general design has sustained from 1952 to 1984. There were teething problems in the early K-model, but they were all cured by 1957 with the introduction of the Sportster.

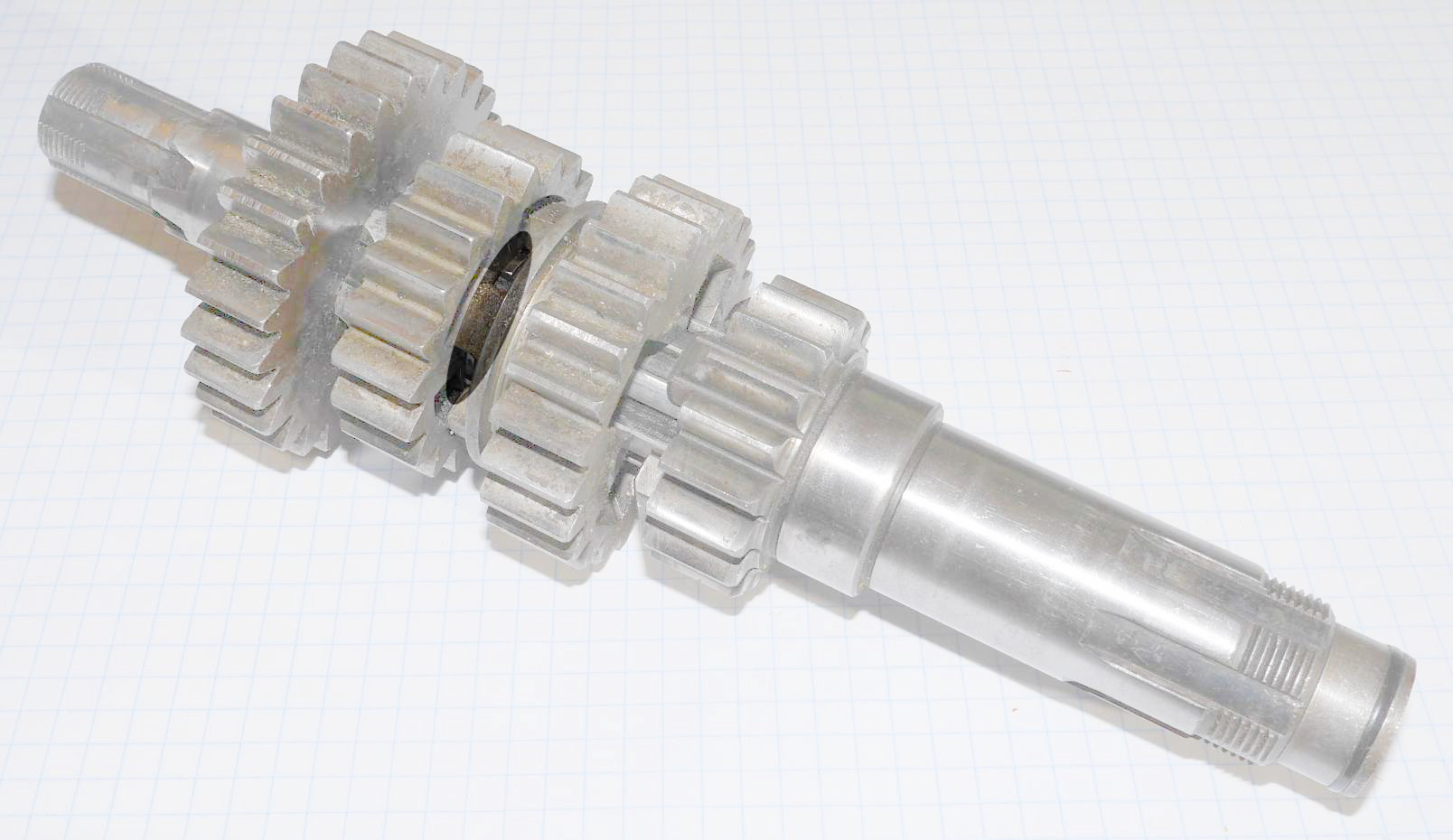

The mainshaft washer 3rd gear is in the darker oval.
Bottom of first column move down to the left


1952 to 1955 K-models.


1956 to 1984 K-models and Sportsters.

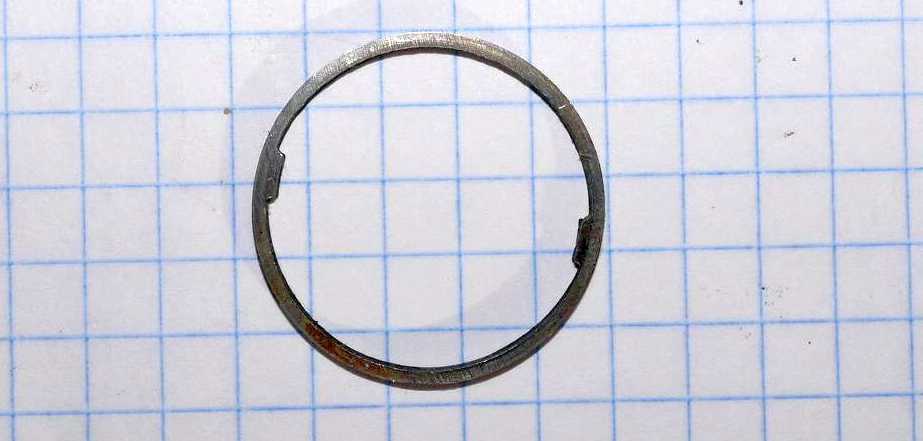

Sportster 35364-56 Mainshaft washer 3rd gear, 1956-1984

The little tabs engage the splines on the mainshaft and keep the washer from rotating on the mainshaft.
