Peg nut

The 1977 case redesign moved the footpegs to the engine. This nut goes on a large stud sticking through the primary cover.

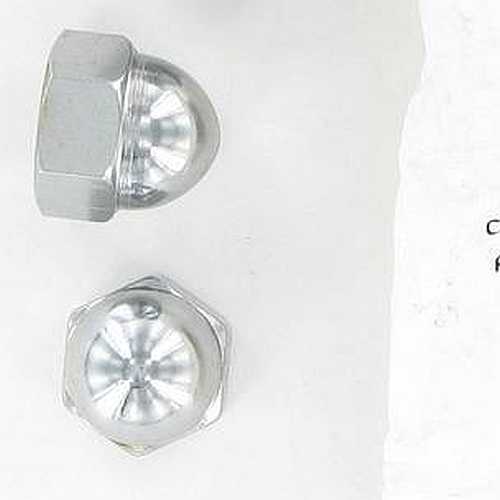

Sportster_Engine_Primary_Primary-cover_7627_peg-nut_1977-1984 Sportster_Engine_Primary_Primary-cover_7627_peg-nut_1977-1984 CAD
Acorn nut, 1/2"-13 x 3/4" hex. Problems: Pegs should be on chassis. Image credit: Jan Willem Boon - parts for your Harley-Davidson - database.
